EXPANSION JOINTS FOR COAL FIRED POWER GENERATION
By managing thermal expansion and contraction, expansion joints used in coal-fired power plants are critical in preventing equipment and pipe failures. Expansion joints are often constructed from high-strength materials such as Viton™, EPDM, FKM, PTFE and ceramic insulation to withstand corrosive conditions and high temperatures. Fabric, metal, and rubber type joints are all options that protect against coal emissions in applications including the flue gas duct.

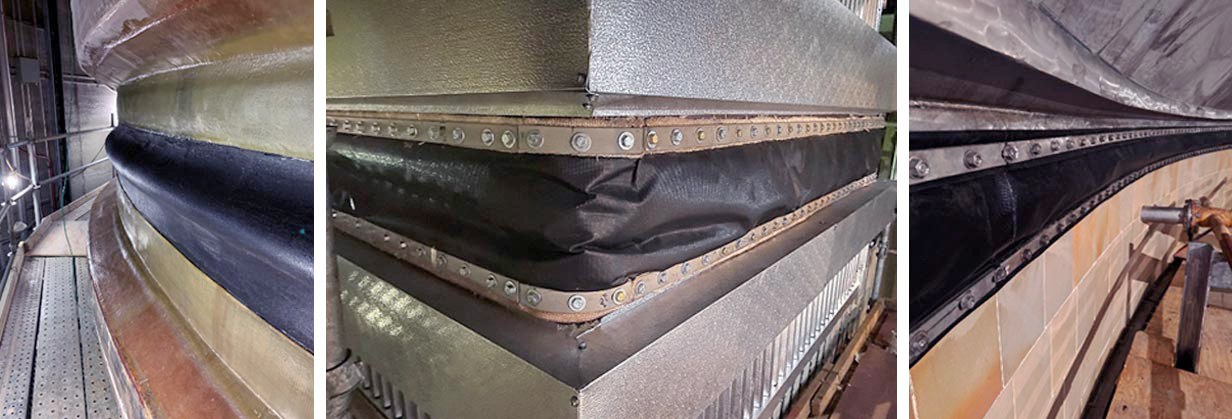

Fabric Expansion Joints are designed:
- To withstand temperatures up to 2000 deg F
- To last for years in rugged service conditions and chemicals
- To accommodate large lateral and axial movements
- For easy, cost-effective installation
Fabric Expansion Joints for Coal Fired Power Plants:
- ESP Outlet Expansion Joints
- Absorber Inlet Expansion Joints
- Absorber Hood Expansion Joint
- Baghouse Inlet & Outlet Expansion Joints
- Economizer Inlet & Outlet Expansion Joints
- SCR Inlet & Outlet Expansion Joints
- FD & ID Fan Inlet & Outlet Expansion Joints
- Primary and Secondary Air Expansion Joints
- Overfire Air Expansion Joints
- Dogbone / Condenser Expansion Joints
- Air Preheater Expansion Joints
- FGD / Scrubber / Absorber Expansion Joints
- Cooling Tower Expansion Joints
- Wastewater Treatment Expansion Joints
For more information: Non-Metallic Flue Duct | Precision Hose & Expansion Joints

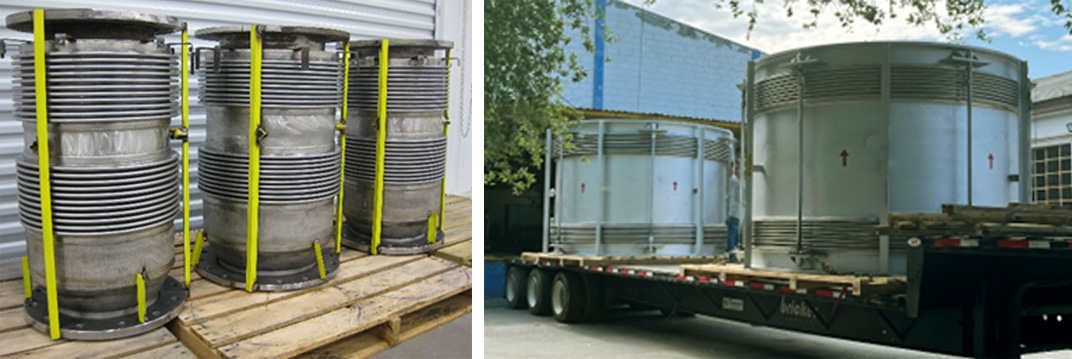

Metal Expansion Joints:
- Available from diameters 5” to over 100”
- Manufactured in single-ply and multi-ply construction
- Constructed from a range of materials. Standard bellows are typically made using 321 stainless steel. Additional options include 304L, 310, 316, and 316L available. Nickel Alloys 400, 600, 625, 800, and Hastelloy
- Designed per EJMA, ASME B31.1, ASME B31.3, or ASME Section 8 standards, if required
For more information: Custom Metal Bellows & Expansion Joints for Any Application

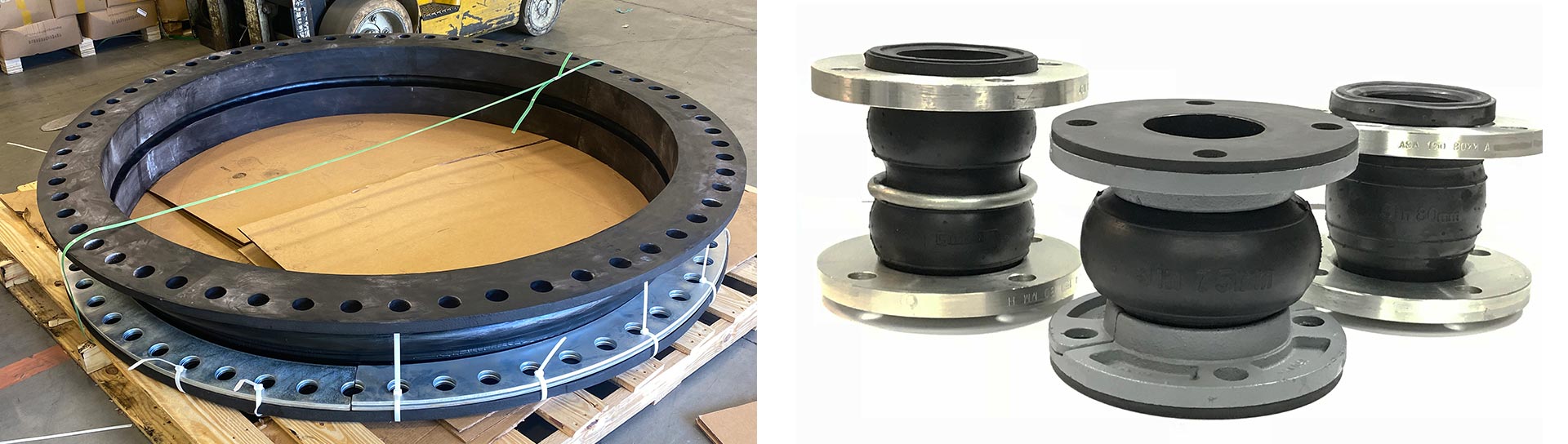

Rubber Expansion Joints are designed:
- To reduce vibration and dampen sound transmission
- Withstand temperatures up to 400 deg F
- To accommodate compression, extension, angular, torsional and lateral movement
- From diameters ½ inch to 120 inch diameter. Other sizes are available on special order
- Using materials that include EPDM, Neoprene, Nitrile, Chlorobutyl, Butyl, Nitrile, Hypalon®, Viton® and natural rubber. Other materials are available on request
Turnkey Field Service Capabilities
From inspections to installation, our team of experienced and professional engineers, specialists, technicians, and managers, has over 30 years of experience with turnkey installations, repairs/refurbs, field splicing, inspections, thermography, comprehensive plant evaluations and root cause analysis & problem solving.
